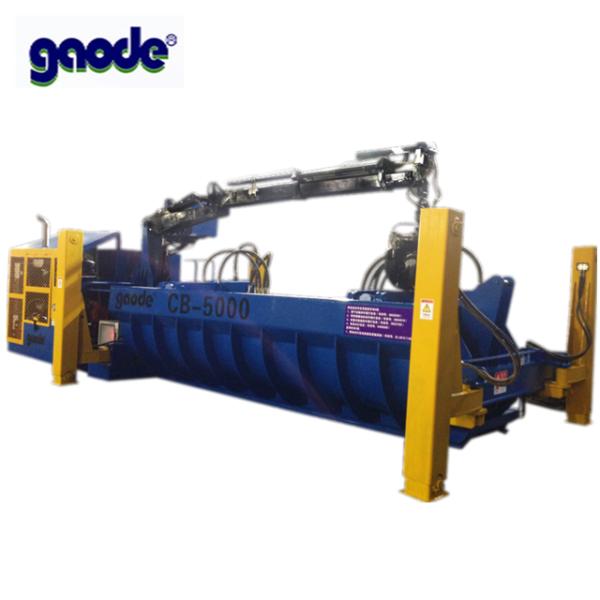

Hydraulic Metal Scrap 15kw Mobile Car Baler Semi Automatic
Premium Products
Hydraulic Metal Scrap 15kw Mobile Car Baler Semi Automatic
1
2
Place of Origin :Jiangsu, China
Brand Name :gaode
Model Number :CB5000
Certification :ISO9001:2000
Packaging Details :nude cargo in container
Supply Ability :100 Set/Sets per Year
Price :$170,000.00 - $210,000.00/sets
After-sales Service Provided :Engineers available to service machinery overseas
Application :Machinery and Hardware
Power :15 kw
Product name :New design hydraulic gaode supplier mobile metal car baler
Usage :Metal Forming Machine
Warranty :6 months
Power(W) :diesel
Condition :New
Voltage :requirment on the customers
Automatic Grade :Semi-Automatic
Port :shagnhai scrap yard metal baling processing
Contact Now
New design hydraulic gaode supplier mobile metal car baler
Company Information
Gaode Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes. Our company was first inaugurated in 2003.
Our Gaode brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Finished Products
The Exhibition
Our Certificate
Our Factory
CB-5000 scrap yard metal baling processing
No.
Parameter
Remarks
1
Side press cylinder
(Level 1)
Model
YG200/140-500
Stroke
500mm
Gaode
Max lid force
630KN*3
Quantity
3sets
2
Side press cylinder
(Level 2)
Model
YG200/140-500
Stroke
500mm
gaode
Max thrust
800KN*3
Quantity
3sets
3
Feeding cylinder
Model
YG250/160-2200
Stroke
2200mm
gaode
Max force
1000KN
Quantity
2sets
4
Press box size (L*W*H)
5000*2000*1200mm
5
Bale size (W*H)
800*700mm
6
Hydraulic system working pressure
25MPa
7
Total power
260HP
Cummins
8
High pressure pump
Model
OS4VSO
Nominal pressure
31.5MPa
O’SHENG
Nominal outflow
180ml/r
Quantity
1set
9
High pressure pump
Model
OS4VSO
Nominal pressure
31.5MPa
O’SHENG
Nominal outflow
125ml/r
Quantity
1set
10
Overall dimension
11000*3000*4000 (side wings open)
L*W*H
11000*2300*4000mm (side wings close)
L*W*H
11
Cover area
15000*4000mm
L*W
12
Operating system
Manual
Jiangyin Dehong
13
Cooler
Oil-steam heat exchange
Jinrong Cooler
14
With mechanical hand and operating room
gaode
Our Services
6months guarantee for whole machine.
24hours technical support by email.
Calling or door to door service.
User manual and detailed video.
FAQ
1, Q:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2, Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
3, Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4, Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory. Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
